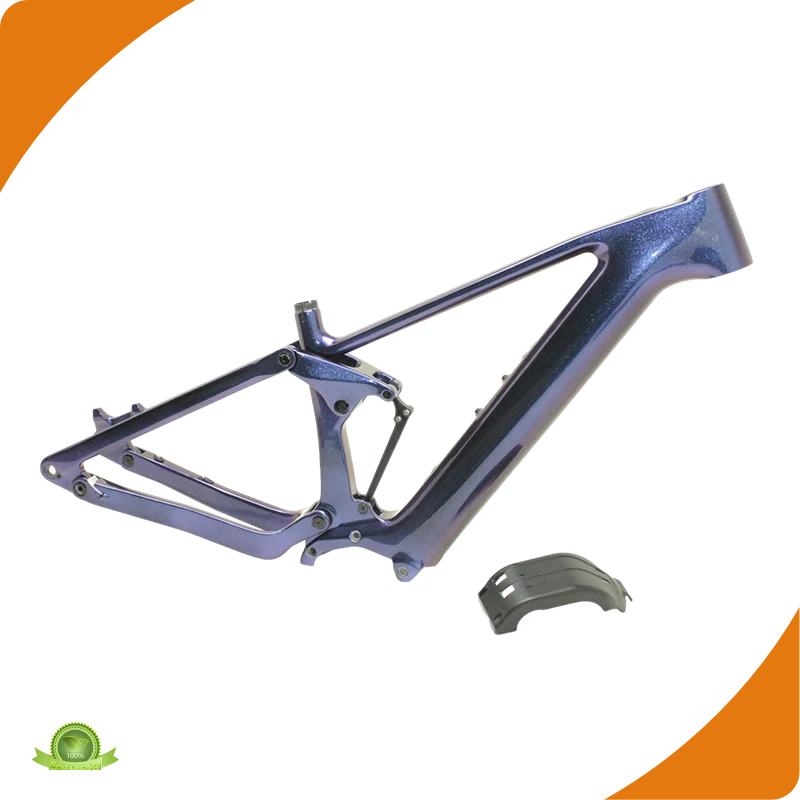

ZSZT E Bike Kit NOall Sizes
Product details of the e bike kit
Product Specification
Weave:: UD
Size: S/M/L/XL
Product name:: E Bicycle Carbon Fiber Frame
Cable guide:: internal cable
Foldable: NO
Product Introduction
The advanced technology has been applied throughout the whole production of ZSZT e bike kit. The product is in high demand in the international market due to its high quality and good usability. Shenzhen Zhaosheng Carbon Fiber Technology Co.,Ltd. realized comprehensive utilization of resources, creating wealth for the customers.
Prroduct Name | Bafang M820 Electric Bike Mid Drive Carbon Fiber Frame |
Keywords | Full Suspension Enduro E-Bike Frame |
Max Tire | 29ER*2.6" or 27.5ER*2.8" |
Brand Name | pinaworks |
headset | Top∮52mm,Down∮62mm |
Weight of Frame | 2400g±40g(17.5") |
Seatpost Size | Dia 31.6MM |
Tail hook | Thru-axle Model |
Rear Axle Shaft | 148MM*∮12 |
Shock Absorber Length | 210MM(Eye to Eye Length) |
Shock Absorber Travel | 50MM |
Front Spacing Travel | 170MM |
Rear Spacing Travel | 150MM |
Motor | Bafang M820 |
Battery | Bafang BT F014 , ZS BT 740 |
Energy | 410WH/740WH |
Voltage | 36V/43V |
Packing include | Frame+Headset+Clamp+Thru Axle |
Wish You Have A Pleasant Purchasing Time! Pls Click >>Contact Us
Company Feature
• Shenzhen Zhaosheng Carbon Fiber Technology Co.,Ltd.'s location enjoys traffic convenience with multiple traffic lines passing through. This is conducive to the outward transportation and is the guarantee of timely supply of products.
• Since the establishment in our company has experienced various difficulties during the continuous development for years. We have accumulated rich experience, and achieved excellent results. Now, we take a high position in the industry.
• Our company adheres to the service purposes of 'attentive, accurate, efficient, decisive'. We are responsible for every customers, with the goal of bringing customers timely, efficient, professional, fast and one-stop service.
• Our company has a experienced backbone team with skilled business and great work ability, which is ready for continuous development and business development in the future.
Shenzhen Zhaosheng Carbon Fiber Technology Co.,Ltd. has samples prepared for you. If you have any needs, feel free to contact us.
