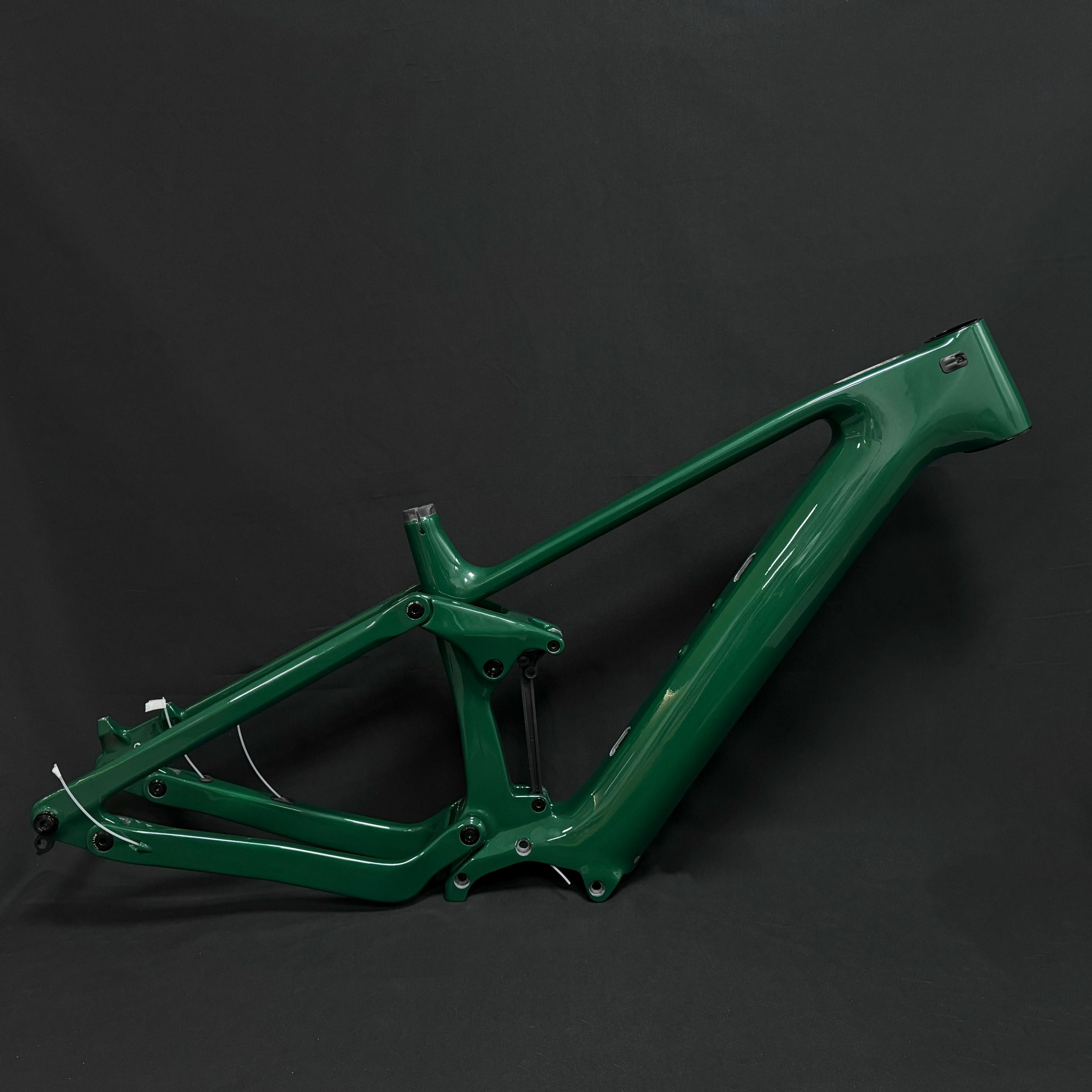

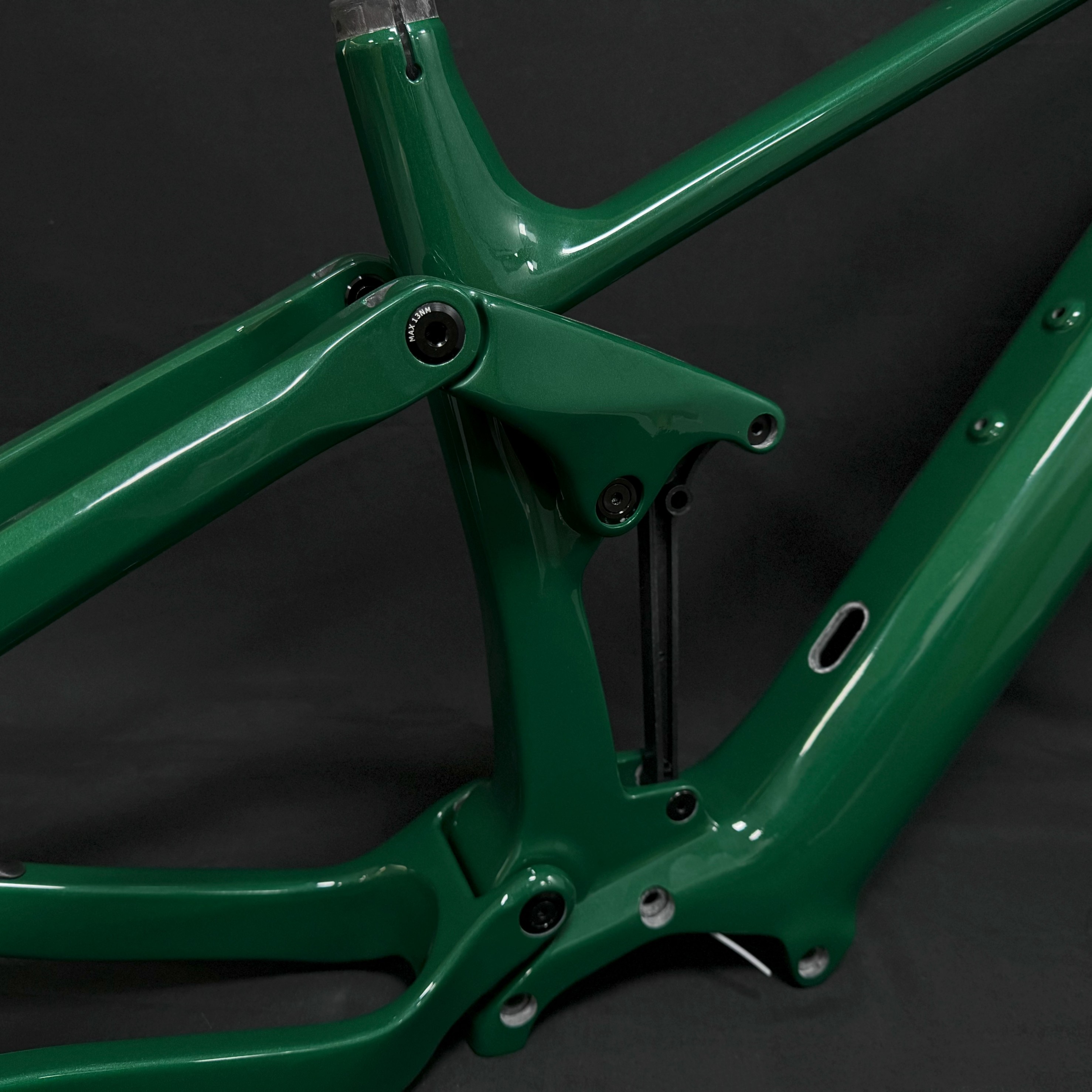

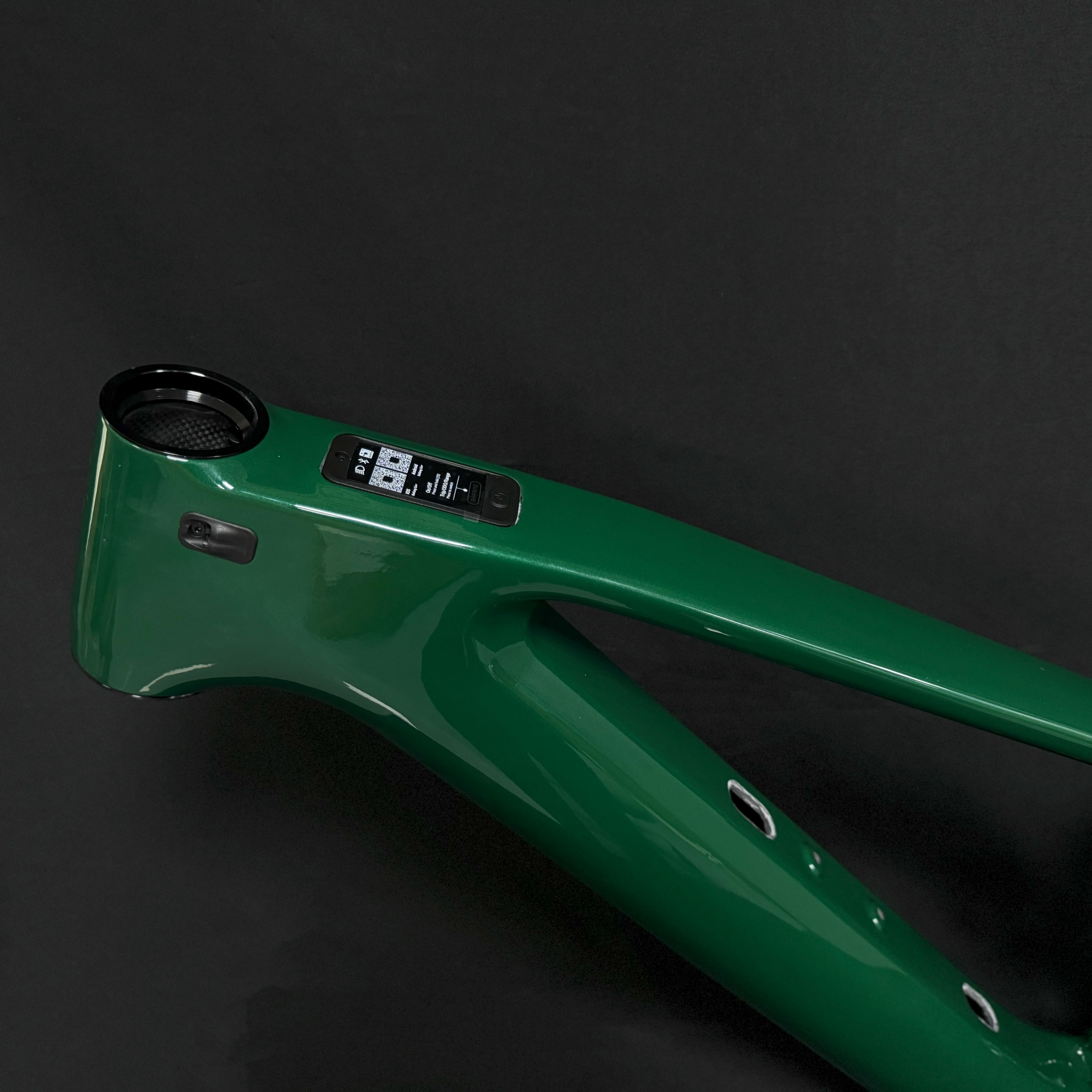

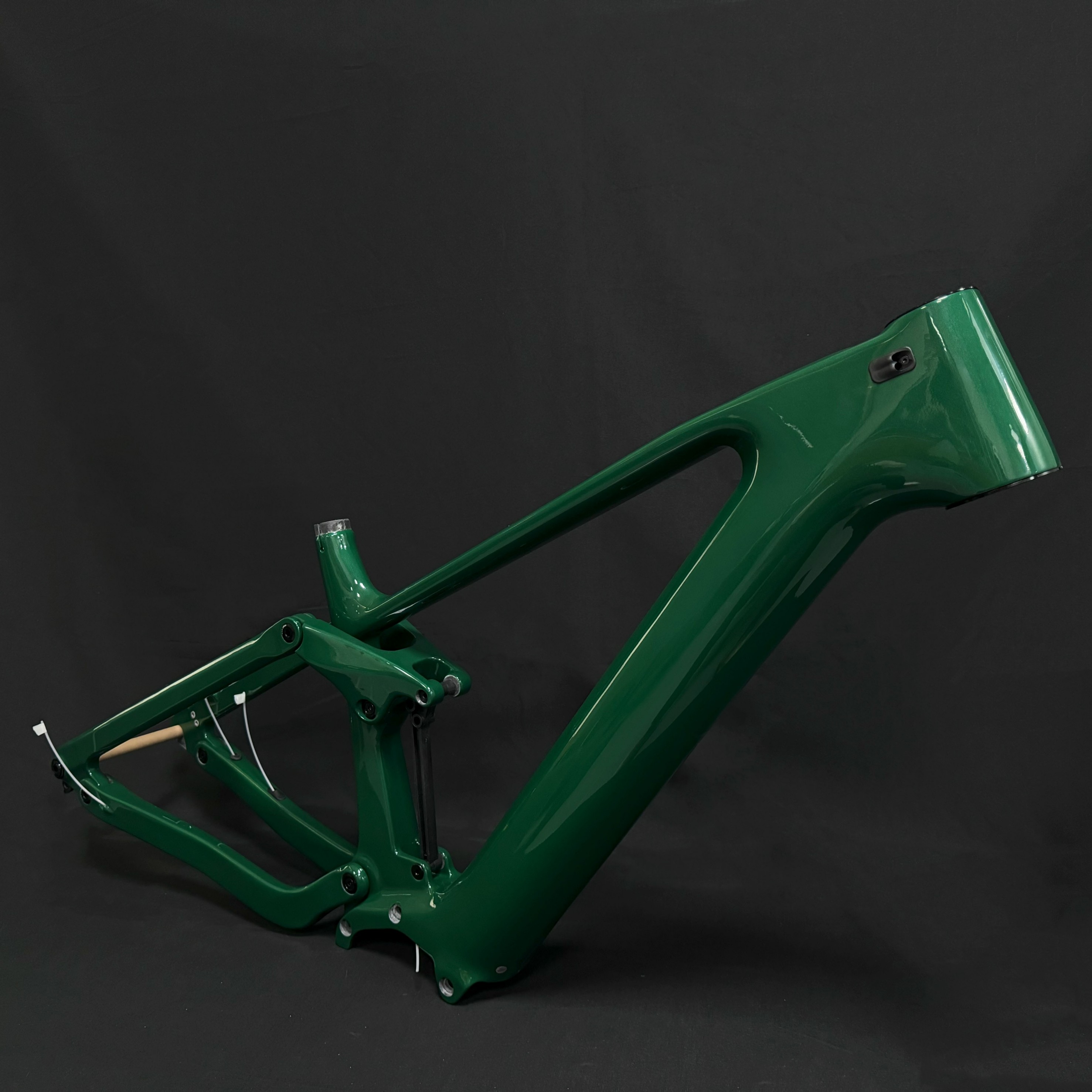

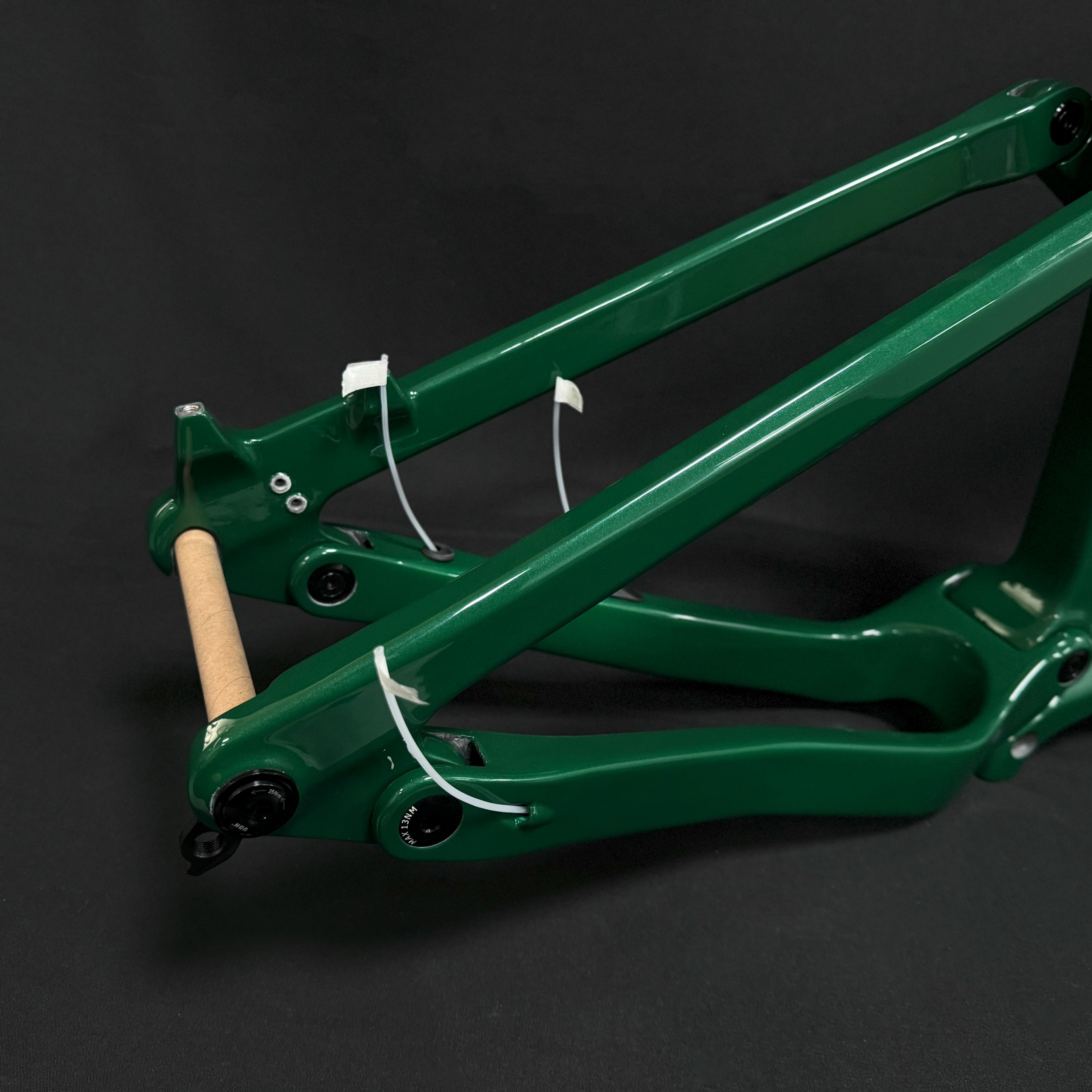

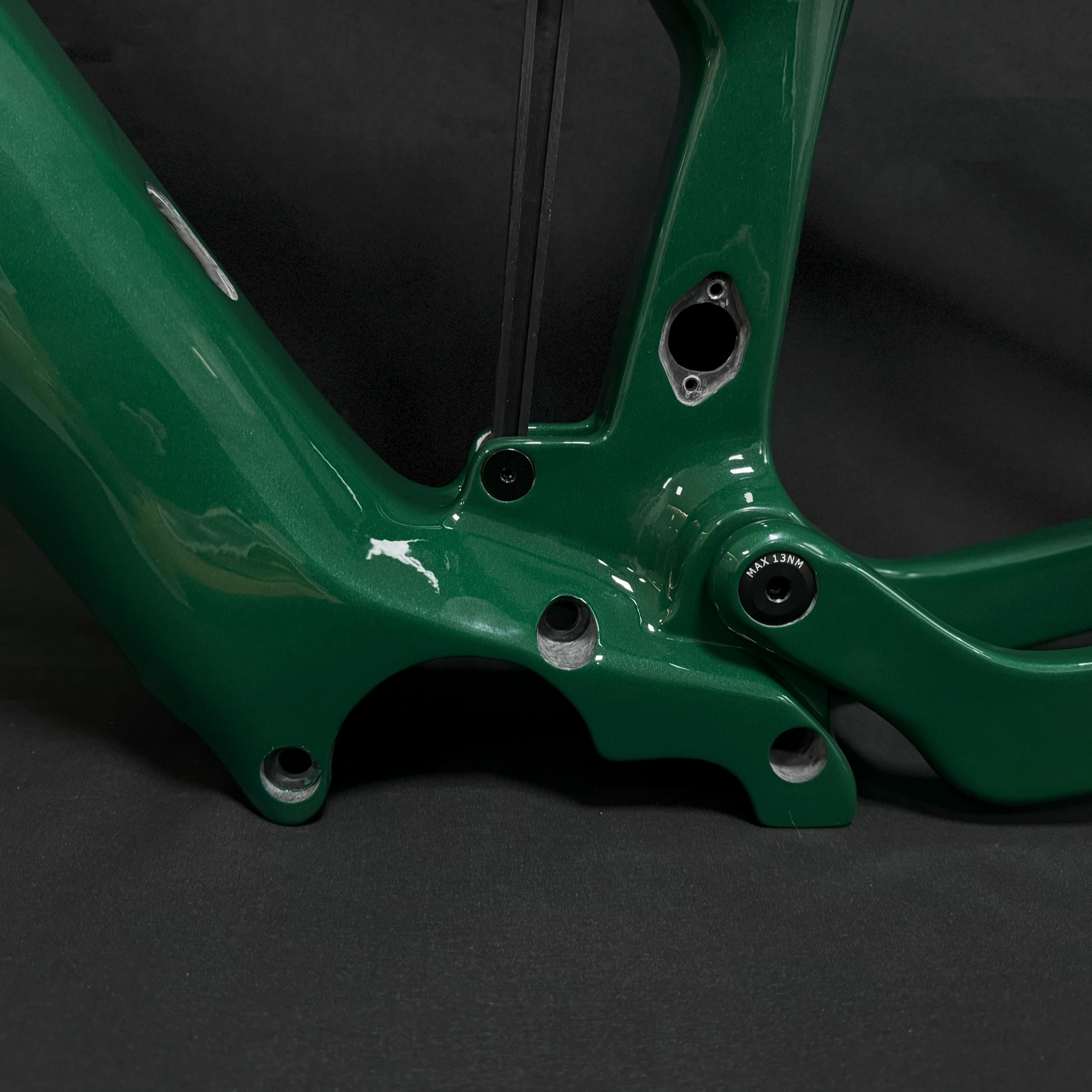

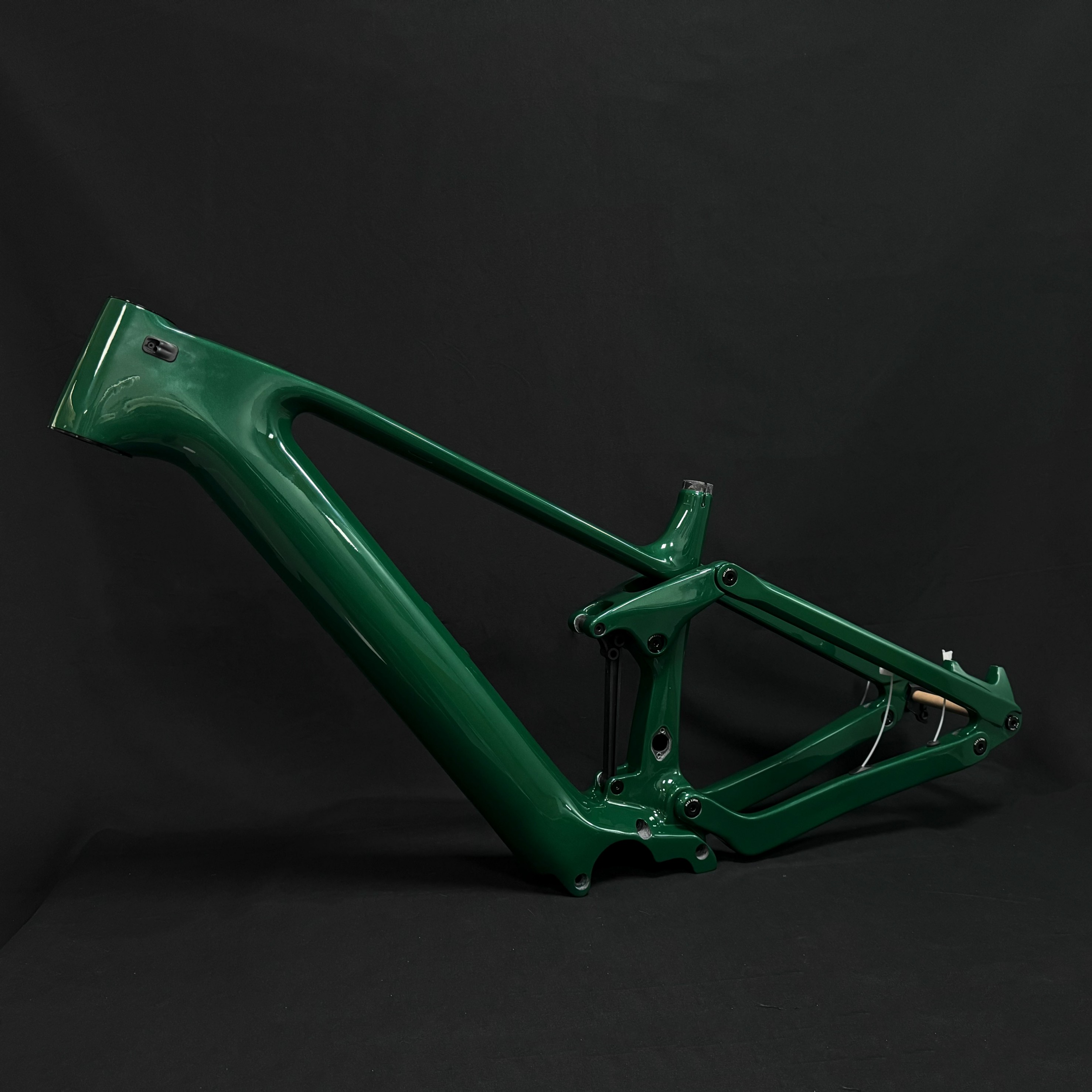

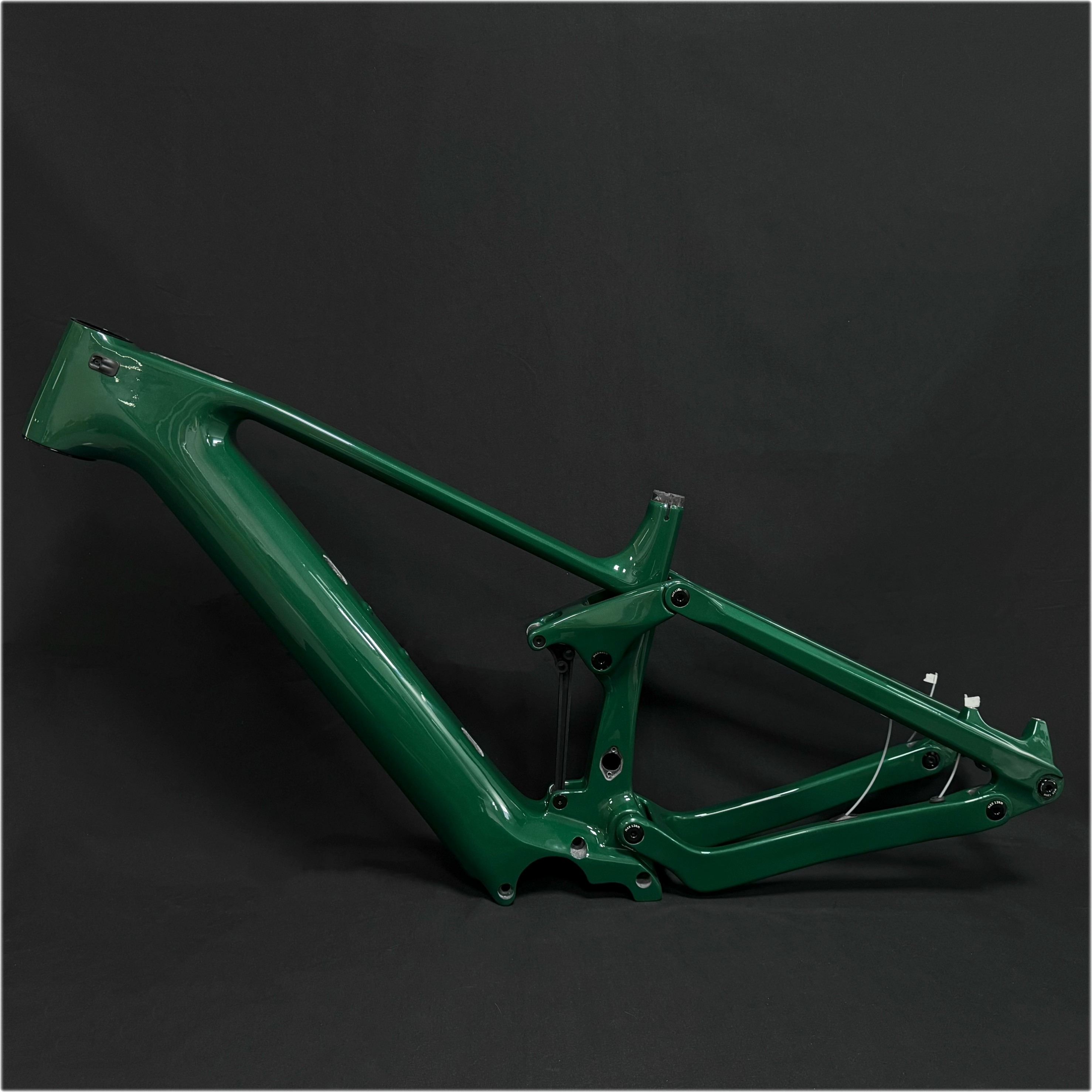

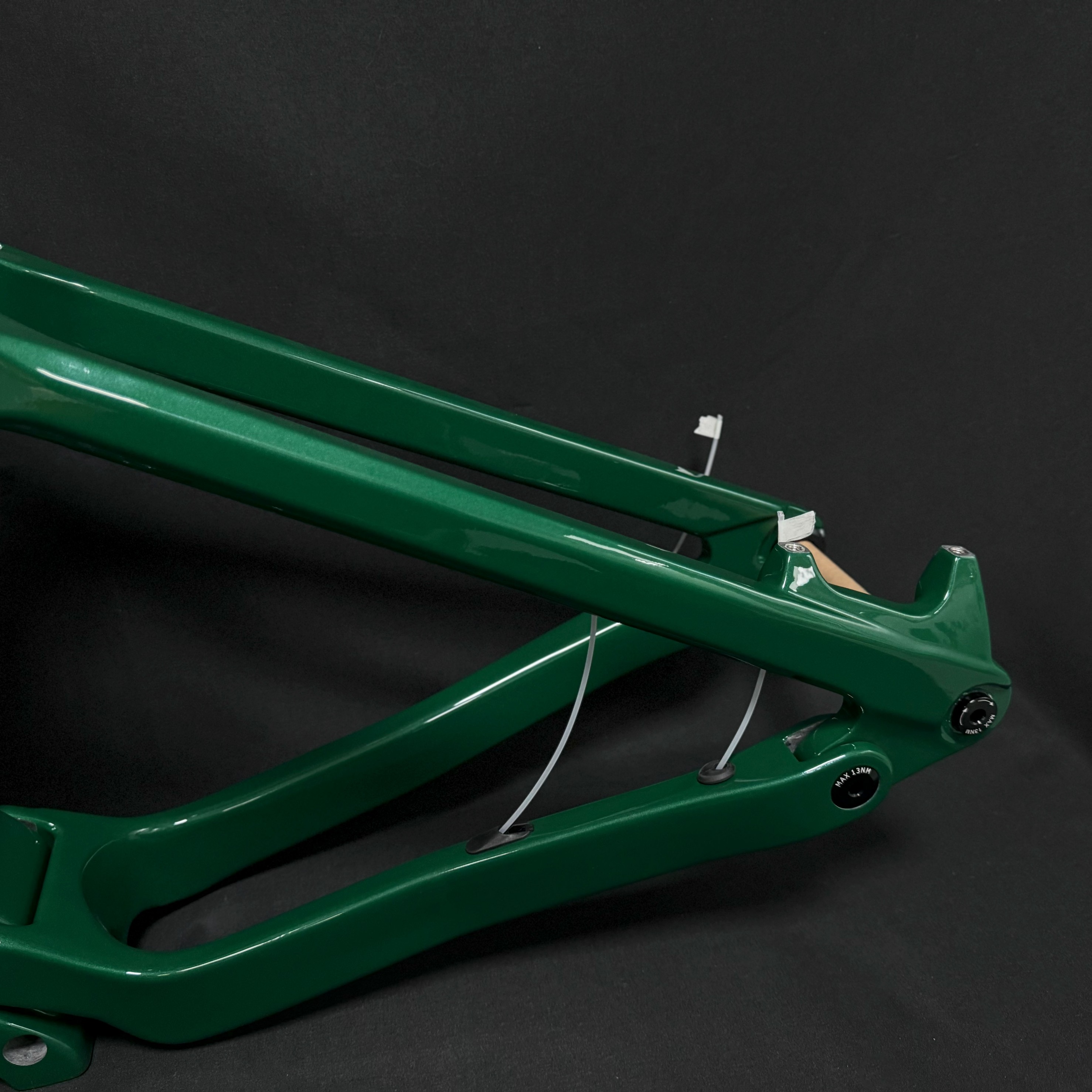

Telaio per mountain bike elettrica ultraleggera in fibra di carbonio DPC030 | Dotato di motore centrale Bafang M820 | Supporta ruote da 29 pollici/27,5 pollici
CEF50 è una versione leggera del telaio MTB a sospensione completa assistita elettricamente in fibra di carbonio. È il cavo tutto interno, freno a disco Il telaio è disponibile in quattro misure: 15", 17", 19" e 21", che possono soddisfare i ciclisti con un'altezza compresa tra circa 160 cm e 200 cm.
Modello: CEF50
Nome: telaio per bici elettrica da montagna a sospensione completa
Materiale: fibra di carbonio T700
Tessitura: UD
Peso: 2600±50 g (17" monocolore)
SIZE: S/M/L/XL(15"/17"19"/21")
product description
CEF50 is a lightweight version of carbon fiber electric assisted full suspension MTB frame. It is the all internal cable, disc brake The frame comes in four sizes: 15", 17", 19", and 21", which Can meet the riders with a height of around 160CM to 200CM. This E-bike frame uses BaFang M820 motor, and UDH hanger. At present, there are four specifications of batteries available, including 36V/720wh, 43V/410wh, 48V/480wh and 48V/700wh. Suitable for installing various models of shock absorbers with a size of 210 * 50mm. The minimum weight of a complete E-bike can reach 17.9KG.
Product Parameters
| Malli | CEF50 |
| Name | Full suspension Mountain electric bike frame |
| Materiaali | Carbon Fiber T700 |
| Weave | UD |
| Paino | 2600±50g(17" single color) |
| SIZE | S/M/L/XL(15"/17"19"/21") |
| Takuu | 3 vuotta |
| Brake | Disc brake |
| Cable guide | all internal cable |
| MOQ | 1sarja |
Technical Information
Prroduct Name |
China Wholesale E-bike MTB Carbon Fully Frame with Bafang F014 Battery and M820 engine
|
Keywords
|
Full Suspension Enduro E-Bike Frame
|
Max Tire
|
29ER*2.6" or 27.5ER*2.8"
|
Tuotemerkki
|
pinaworks
|
headset
|
Top∮52mm,Down∮62mm
|
Weight of Frame
|
2400g±40g(17.5")
|
Seatpost Size
|
Dia 31.6MM
|
Tail hook
|
Thru-axle Model
|
Rear Axle Shaft
|
148MM*∮12
|
Shock Absorber Length
|
210MM(Eye to Eye Length)
|
Shock Absorber Travel
|
50MM
|
Front Spacing Travel
|
170MM
|
Rear Spacing Travel
|
150MM
|
Motor
|
Bafang M820
|
Akku
|
Bafang BT F014 , ZS BT 740
|
Energy
|
410WH/740WH
|
Voltage
|
36V/43V
|
Packing include
|
Frame+Headset+Clamp+Thru Axle
|
