Product details of the electric bike
Product Specification
Type: Carbon Frame, 29ER
Use: Mountain Bikes, Full Suspension E-bike frame
Material: Carbon T800
Keyword: Electric Bike Carbon Frame Mtb E Bike Frame
Quick Overview
The unique electric bike design is close to the user’s aesthetic tastes. This product is more efficient as it is produced with advanced technology. The electric bike produced by Shenzhen Zhaosheng Carbon Fiber Technology Co.,Ltd. is of high quality and is widely used in the industry. Shenzhen Zhaosheng Carbon Fiber Technology Co.,Ltd. gets obvious price advantages.
Product Description
The electric bike of Shenzhen Zhaosheng Carbon Fiber Technology Co.,Ltd. has the following advantages compared with electric bike in the market.

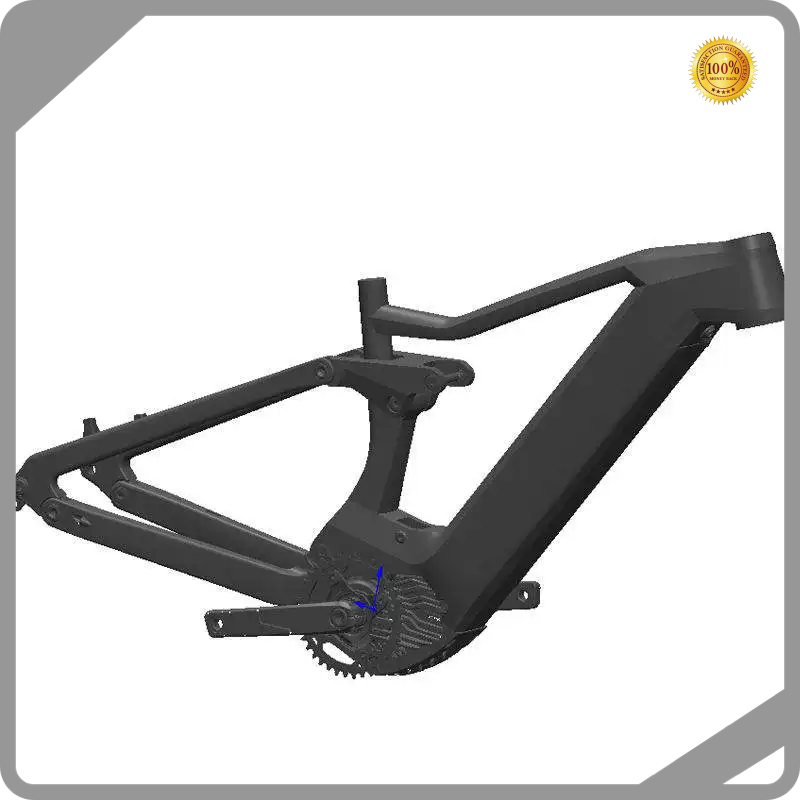

Product Name | New Design Full Suspension Frame T800 Full Carbon Fiber Dual Suspension E Bike Frame for Bafang Motor M510/M600 |
Keywords | Custom Logo Carbon T800 Bike Frame |
Max Tire | 29er*2.3" |
Brand Name | pinaworks |
headset | Top∮52mm,Down∮66mm |
Weight of Frame | 3400g±40g(17.5") |
DI2&Mechanical | Both support |
Seatpost Size | Dia 31.6MM |
Tail hook | Thru-axle Model |
Rear Axle Shaft | 148MM*∮12 |
Shock Absorber Length | 205MM(Eye to Eye Length) |
Shock Absorber Travel | 57MM |
Front Spacing Travel | 150MM |
Rear Spacing Travel | 160MM |
Battery | BAFANG F15 |
Battery Capacity | 800 WH |
Motor | BAFANG M510 / M500/ M600 |
Test | SGS |
Warranty | 3 years |
Wish You Have A Pleasant Purchasing Time! Pls Click >>Contact Us
Company Advantages
Shenzhen Zhaosheng Carbon Fiber Technology Co.,Ltd. is a company dedicated to the development and production of carbon fiber frame,carbon fiber E-bike frame. Over the years, our company has always regarded customers as center. To better meet customers' needs, we wholeheartedly provide customers with professional and high-quality one-stop service. Our products are guaranteed to be quality. Customers with needs are welcomed to contact us for purchase.
