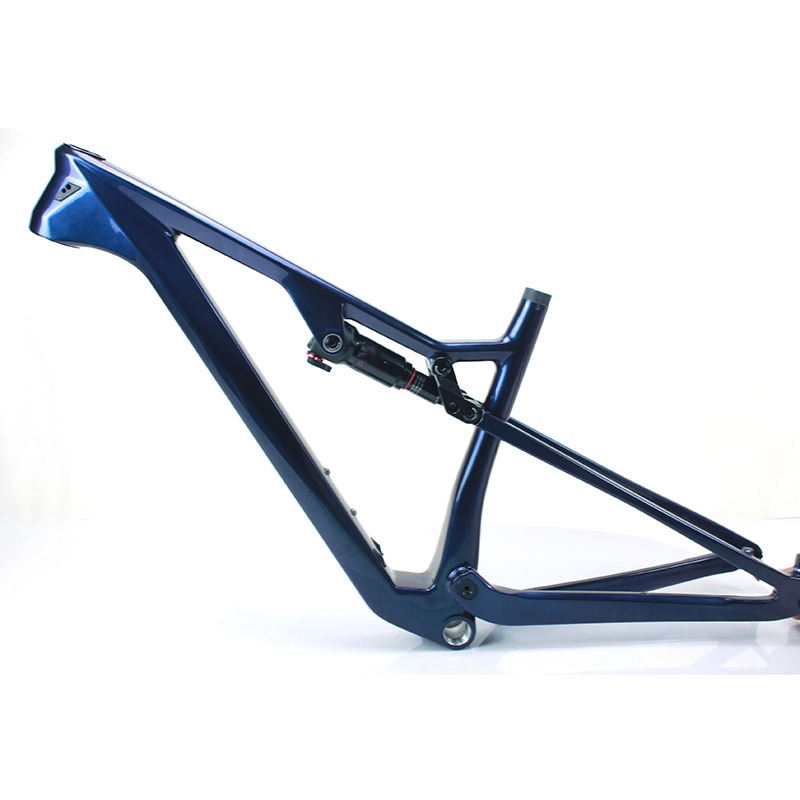

Disc-brake Thru-axle Full Suspension 29er Xc Bike Frame
Our CMF41 is a cutting-edge lightweight XC full-suspension soft-tail mountain bike frame. Remarkably, the weight of the 17" frame is a mere 2100g, showcasing exceptional lightness.
Mode: Carbon fiber mountain bike frame
Size: 15.5"/17.5"/19"
Material: T800
Max Tire: 29er*2.35"
headset: Top∮44mm, Down∮56mm
Weight of Frame: 2100g±40g(17")
DI2&Mechanical: Both support
Seatpost Size: Dia 31.6MM
product description
Our CMF41 is a cutting-edge lightweight XC full-suspension soft-tail mountain bike frame. Remarkably, the weight of the 17" frame is a mere 2100g, showcasing exceptional lightness. This remarkable frame offers three distinct sizes: 15", 17", and 19", catering to a wide range of rider preferences. Additionally, it comes in two versions, 27.5ER and 29ER, with the ability to accommodate maximum tires of 2.6" and 2.35" respectively. What's more, we can customize the color and LOGO of the product based on the specific requirements of our customers, ensuring a personalized touch.
With its advanced features and customization options, the CMF41 is a top choice for mountain biking enthusiasts seeking a high-performance and versatile frame.
Product Parameters
| Mode | Carbon fiber mountain bike frame |
| Size | 15.5"/17.5"/19" |
| Material | T800 |
| Max Tire | 29er*2.35" |
| Headset | Top∮44mm, Down∮56mm |
| Weight of Frame | 2100g±40g(17") |
| DI2&Mechanical | Both support |
| Seatpost Size | Dia 31.6MM |
| Tail hook | Thru-axle Model |
| Rear Axle Shaft | 148MM*∮12 |
| Shock Absorber Length | 165MM(Eye to Eye Length) |
| Shock Absorber Travel | 40MM |
| Front Spacing Travel | 120MM |
| Rear Spacing Travel | 110MM |
| MOQ | 1set |
